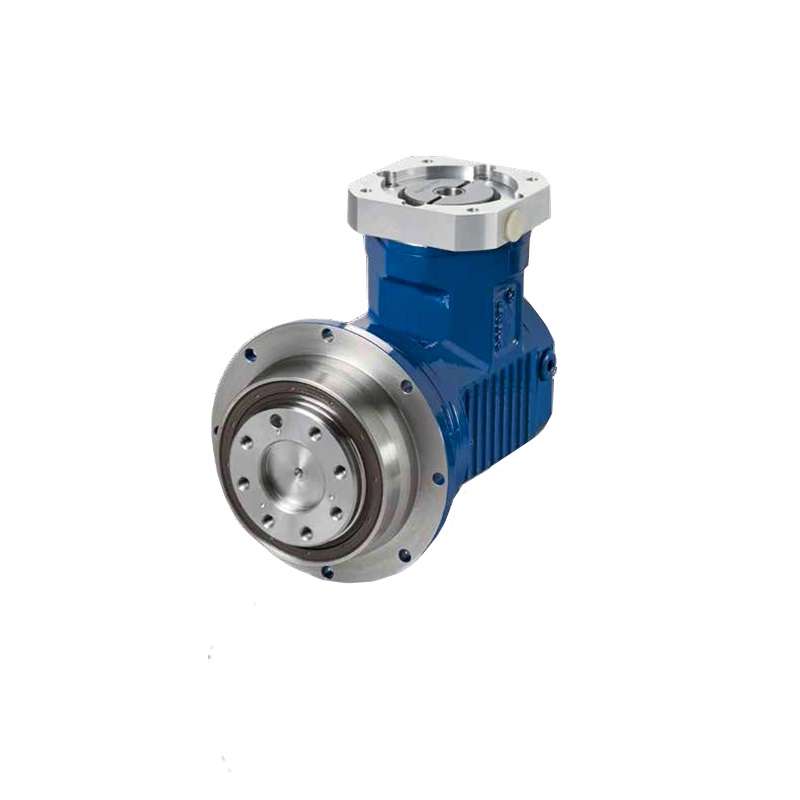

伺服螺旋锥齿轮箱SKPG01-SKPG04
Technical specifications on this page and in the tables on the following pages are intended only for rough preselection.
Gear teeth: SK PG 01 – SKPG 04
K lingelnberg spiral bevel toothing,
spur toothing
Direction of rotation: T he opposite direction when facing C and A
Efficiency: S ize 01 η ~0,93
S ize 02 η ~0,93
S ize 03 η ~0,92
S ize 04 η ~0,92
Life time: 20000 h
Permissible gearbox temperature
at housing: -10 °C to +90 °C
Lubrication: Oil lubrication
Mounting position: Any, please specify when ordering
Surface
protection: Primer coat RAL 9005 black
Protection rating: I P 54
